ENGINES




Single Cylinder Engine

4 HP  Single Cylinder

HP @ 125psi & 600rpm.................... 4
Bore and Stroke................ 3.75" x 2"
Rated RPM......................... up to 750
Rated Steam Pressure.... max 150psi
Steam Consumption.... max 200lb/hr
Reversing Gear ..........Slip Eccentric
Overall.... 10" W x 15.75" L x 20.5" H

CASTINGS: $ 1,000

PLANS: EN.01
pdf  file $ 50

This engine has the lowest parts count and is easiest to construct by those who choose to do the machining themselves. Most of the engine is constructed from cast iron castings with a few parts machined from regular steel stock. This engine is suitable for any use where the higher steam consumption is not important, such as stationary applications; nevertheless, it can be used to drive a displacement type hull at brisk speeds.

OPTIONS: Stephenson Link reversing; Feedwater/Air-Condensate Pumps.
See: ACCESSORIES page.

This engine uses our 4 - 7 HP Ofeldt boiler.






5HP Compound Engine

5 HP Compound

HP @ 125psi & 600rpm.................... 5
Number of Cylinders....................... 2
Bore and Stroke...... 2.5" + 3.75" x 2"
Rated RPM......................... up to 750
Rated Steam Pressure.... max 150psi
Steam Consumption...... 140-150lb/hr
Reversing Gear ..........Slip Eccentric
Overall.... 10" W x 20.75" L x 18.5" H

CASTINGS: $ 1,250

PLANS: EN.02
pdf  file $ 50

The Reliable Compound engine is suitable for marine or stationary use. It has proved itself for many years. Its design provides dependable operation and there is ample safety factor in all parts. The weight of complete engine is 87 lbs. It will drive a boat 15 to 25 feet long at 6 to 10 mph depending on the displacement of the boat and its design. The casting kit consists of 41 cast iron pieces including a cast semi steel crank shaft which is strong, wear resistant and readily machinable. The design is especially made for easy construction and most of the work may be done on a 12 inch lathe and drill press.

OPTIONS: Stephenson Link reversing; Feedwater/Air-Condensate Pumps.
See: ACCESSORIES page.

This engine uses our 4 - 7 HP Ofeldt boiler, and is suitable for our Traveler, Salty, Monitor, and Panatela boats.






Double Simple Engine

6 HP Double Simple Engine

HP @ 125psi & 600rpm.................... 6
Number of Cylinders....................... 2
Bore and Stroke........... ( 2 ) 2.5" x 2"
Rated RPM......................... up to 750
Rated Steam Pressure.... max 150psi
Steam Consumption............ 200lb/hr
Reversing Gear ..........Slip Eccentric
Overall.... 10" W x 20.75" L x 18.5" H

CASTINGS: $ 1,250

PLANS: EN.03
pdf  file $ 50

The Reliable Double Simple engine is similar to the Compound, EN.02 - the low pressure cylinder of the compound is replaced with a second, high pressure cylinder. In all other respects the engines are the same. The engine is suitable for marine or stationary use. Positive starting and dependable operation is ensured by the 90o crank. The casting kit consists of 41 cast iron pieces including a cast semi steel crank shaft and the finished engine weighs 87 lbs.

OPTIONS: Stephenson Link reversing; Feedwater/Air-Condensate Pumps.
See: ACCESSORIES page.

This engine uses our 4 - 7 HP Ofeldt boiler, and is suitable for our Salty and Monitor boats.






7HP Triple Engine

7 HP  Triple Expansion

HP @ 200psi & 600rpm.................... 7
Number of Cylinders....................... 3
Bore & Stroke... 1.75"+ 2.5"+3.75"x2"
Rated RPM......................... up to 800
Rated Steam Pressure.... max 200psi
Steam Consumption............ 125lb/hr
Reversing Gear ..........Slip Eccentric
Overall.... 10" W x 27.75" L x 18.5" H

CASTINGS: $ 1,500

PLANS: EN.04
pdf  file $ 50

This engine is the only Triple Expansion Engine available in the USA in its capacity, and a small version of the larger yacht engines used many years ago. It is suitable for use in hulls 16 to 25 feet long, and will drive such boats at 10 mph or better, depending on the hull. The engine incorporates some of the best features of the old engines, plus functional simplicity and rugged construction. There are 59 castings in the set; the castings weigh about 198 lbs; and the finished engine weighs 155 lbs.

OPTIONS: Stephenson Link reversing; Feedwater/Air-Condensate Pumps.
See: ACCESSORIES page.

This engine uses our 4 - 7 HP Ofeldt boiler, and is suitable for our Salty and Monitor boats.

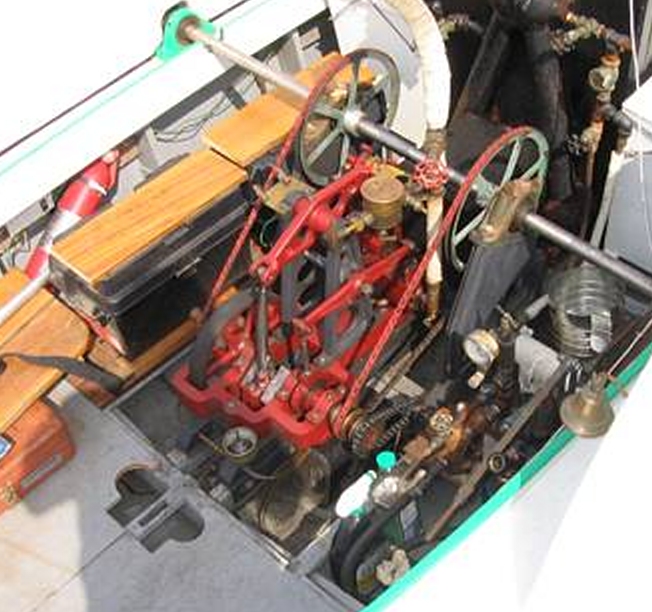

Walking Beam Engine

Walking Beam Engine

HP @ 150psi & 300rpm.................... 4
Bore and Stroke................ 2.25" x 4"
Rated RPM......................... up to 300
Rated Steam Pressure.... max 150psi
Steam Consumption...... 150-160lb/hr
Reversing Gear ..........Slip Eccentric
Overall...... 19.5" W x 21.5" L x 19" H

CASTINGS: $ 1,300

PLANS: EN.05
pdf  file $ 50

The Reliable Walking Beam engine is characteristic of the earliest steam engines. It may be used for either marine or stationary purposes, and will run either forward or reverse. This is accomplished by turning the flywheel 1/2 turn in the desired direction. This engine is robust and special attention has been given in the design to give castings of a picturesque appearance. The casting kit contains thirty pieces and weighs about 127 lbs. The finished engine weighs 118 lbs.

This engine uses our 4 - 7 HP Ofeldt boiler, and is suitable for our Rebel boat.






High Speed Twin Engine

2 Cylinder - Single Acting
Compound or Double Simple

HP @ 750rpm and upward....... 5 - 18
Number of Cylinders....................... 2
Bore & Stroke.. 2.25" + 3.375" x 2.25"
or... ( 2 ) of 3.375" x 2.25"
Rated Steam Pressure.... max 600psi
Reversing Gear... 4 way steam valve
Overall.... 11" W x 23.5" L x 16.75" H

CASTINGS: $ 1,250

PLANS: EN.06
pdf  file $ 50

This heavy duty, short stroke, twin is built in two types. The compound expansion type is for single direction rotation such as generating service. The single expansion type is for marine or other use where reversing is desired. Steam cutoff may be built short or long as desired. Plans include drawings for both configurations. Both of these engines are high speed type, with spool valves and totally enclosed configuration for long hard service. Casting kit weighs about 125 lbs. and finished engine is 120 lbs.

In the lower horsepower and pressure range, we recommend our 4 - 7 HP Ofeldt boiler. At higher pressures and horsepower, the 15 - 40 HP Ofeldt would be better - especially when fitted to our Panatela or Gypsy boats.






V4

V - 4 Single Acting

HP @ 125psi & 750rpm.................. 15
HP @ 600psi & 1000rpm................ 40
Bore and Stroke.......... 3.375" x 2.25"
Rated RPM............................. 750 up
Rated Steam Pressure..... 125-600psi
Steam Consumption............ 525lb/hr
Reversing Gear... 4 way steam valve
Overall...... 21.5" W x 24" L x 12.5" H

CASTINGS: $ 2,000

PLANS: EN.07
pdf  file $ 50

This engine is suitable for marine, auto, or stationary use. As a marine plant it will drive hulls 20 to 35 feet long, and as a light auto plant it will deliver smoth power from zero to maximum speed. The engine is of closed crankcase type with semibalanced spool valves. Self-starting at any crank angle. Direct reversing with a 4-way valve. Casting kit contains 19 pieces including the cast, semi-steel crankshaft. Casting kit weighs about 200 lbs. and finished engine weighs 175 lbs.

We recommend our 15 - 40 HP Monotube Boiler. This would be a good engine/boiler combination for our Reverie boat, or an automotive installation.






V4 Compound

V - 4 Single Acting Compound

Horsepower Range............. 50 to 125
Working Pressure...... 600 to 1000 psi
Cylinders...... 8 ( 2 banks of 4 @ 90o )
Bore & Stroke...... 1.75"+3.375"x2.25"
RPM Range...................... 0 to 1500+
Steam Consumption.. 600 - 1200lb/hr
Overall......... 21.5" W x 24" L x 14" H

CASTINGS: $3,000

PLANS: EN.08
pdf  file $ 50

Reliable offers this engine to amateur constructors for use as an automotive or marine power plant. The design is of closed crankcase type with spool valves. There are no dead centered positions of the crankshaft so starting is always positive in reponse to the throttle. The design uses many commercial parts which are readily available. The casting kit consists of 19 pieces, including cast semi-steel crankshaft, and weighs about 250 lbs. The finished engine is about 240 lbs. Construction requires use of a 16 inch lathe, milling machine, and drill press.

We recommend our 50 - 125 HP Monotube Boiler.






V4 High Power

200 HP, V - 4 Single Acting

HP @ 600psi & 1,000rpm............. 200
Working Pressure.................. 600psi
Cylinders.............................. 4 @ 90o
Bore & Stroke.................... 5" x 3.86"
RPM Range.......................... to 1,000
Overall............ 34" W x 36" L x 21" H
Weight.................................. 700 lbs.

CASTINGS $ 4,000

PLANS: EN.09
pdf  file $ 50

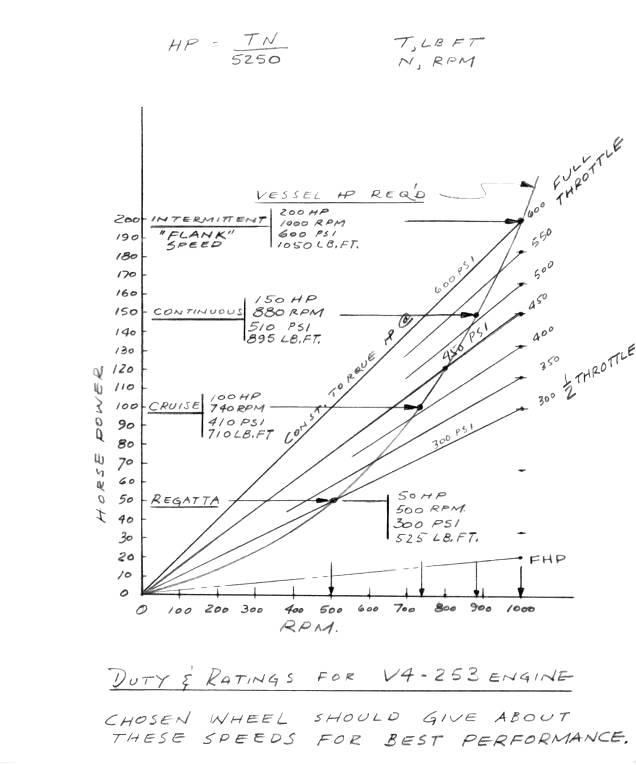

We have often heard people say: "A steam boat can't go as fast as my xxxxx powered boat". Despite the fact that many of us prefer to measure our speed in "fun per mile" rather than "miles per hour", we have developed this engine for the person who wants "raw horsepower". Capable of delivering 1,050 lb.ft. of torque - torque output chart - this power plant should satisfy the rapid ( maybe "rabid" ) steam power fiend.






Turbine

5 HP Geared Impulse Turbine

Horsepower.................................... 5
Working Pressure.................. 125 psi
Output RPM................................. 800
Rotor RPM.............................. 33,000
Gear Ratio............................. 41.5 : 1
Steam Consumption............ 200lb/hr
Overall.... 8.25" W x 15" L x 15.25" H

PLANS: EN.10
pdf  file $ 50

No castings are used to build this single stage, geared impulse type steam turbine. Casing and some parts are made from stock aluminum and steel materials; other parts - bearings, gears, etc. - are commercially available. A durable workhorse of a small, practical, steam turbine.

For a boiler, we suggest our 10 HP Roberts.
